Detailed introduction
Overview:
The High intensity obstacle lights FAA L-856 obstruction light with a 90-degree beam angle is utilized to mark buildings that could potentially cause damage to aircraft. This model of high-intensity aviation obstruction lights emits white light 24 hours a day and night. It combines advanced LED, optical, and system control technologies to meet the most stringent applications. It is suitable for obstacles with a height of 150 meters and is also appropriate for high salinity corrosion areas.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. The light source employs LED technology. The LED PCB is designed with a two-layer structure, providing better heat dissipation, lower energy consumption, and high efficiency.
2. The high-precision beam optical reflector also has a two-layer design. It can effectively control the beam within the required range and significantly reduce power consumption.
3. The shell is made of die-cast aluminum alloy and has a yellow electrostatic powder coating surface. It is anti-vibration and corrosion-resistant.
4. It features a waterproof silicone seal structure.
5. Professional EMC design is implemented to resist electromagnetic interference.
6. The input voltage can be either DC (12-48V DC) or AC (100-265V AC, 50-60Hz).
7. Equipped with a built-in photocell for operation during daytime, twilight, and night.
8. It offers surge and lightning protection.
9. A variety of optional functions are available, such as GPS synchronous flashing, sequence flashing, and alarm relay.
Specification:
|
Product Name |
Aviation obstruction lamp high intensity obstruction light L856 aircraft warning light aviation light for towers obstruction lighting system aviation lights on buildings |
|
Mode NO.: |
AO-HI-A4 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
90 degree |
|
Vertical Divergence(degrees): |
5 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
Glass and die-casting aluminum casing. |
|
Weight(kg): |
9kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

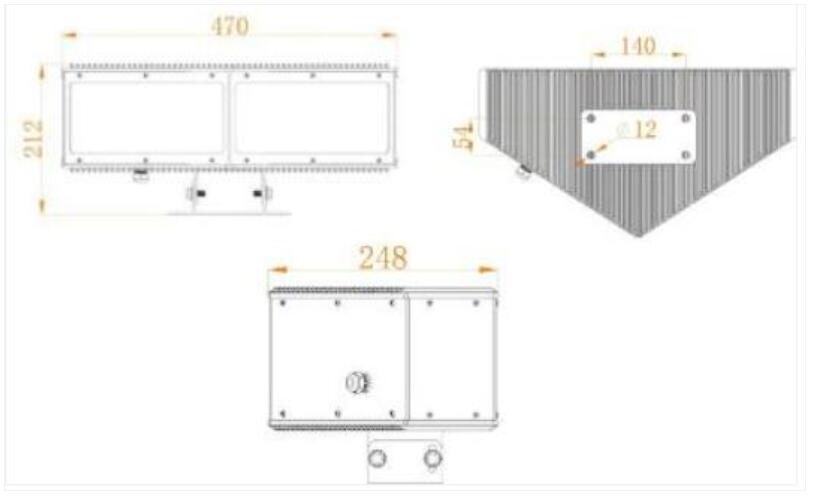

Dimension & Installation:
Applications:
The Aviation obstruction lamp high intensity obstruction light L856 is a crucial safety feature for a wide range of applications. As an aircraft warning light, it plays a vital role in ensuring the safety of air travel.
For towers, the L856 provides a highly visible indication of the tower's height and location. This is essential for pilots to be able to identify potential obstacles and navigate safely. The obstruction lighting system ensures that the light is visible from a distance and operates reliably in all weather conditions.
On buildings, the aviation light L856 serves as a warning to aircraft. In urban areas with a high density of tall structures, these lights help pilots avoid collisions and ensure the safety of passengers and crew. The high intensity of the light makes it visible even in low visibility conditions, such as fog or rain.
The L856 is designed to meet the strict requirements of aviation safety regulations. It combines advanced LED technology with a durable construction to provide long-lasting performance. The light is also energy-efficient, reducing operating costs and environmental impact.
In addition to its safety applications, the L856 can also be used for aesthetic purposes. The bright light can enhance the appearance of buildings and towers, making them more visible and attractive at night.
Overall, the Aviation obstruction lamp high intensity obstruction light L856 is an essential component of aviation safety and a valuable tool for a variety of applications. Whether used on towers, buildings, or other structures, it provides a visible warning to aircraft and helps to prevent collisions, protecting lives and property.
