Helipad design guidelines
The helipad is far more than a simple landing marker. It is a critical piece of aviation infrastructure, an interface between the dynamic world of rotary-wing flight and the static, often complex, terrestrial environment. Consequently, modern helipad design is a disciplined science, governed by a comprehensive set of guidelines that prioritize safety, functionality, and efficiency above all else. These guidelines, synthesizing international standards and local regulations, provide the essential blueprint for creating a safe haven for helicopters.
The foundational principles of helipad design revolve around four core pillars: Dimensions, Obstacle-Free Airspace, Surface and Structure, and, crucially, Lighting and Visual Aids.
1. Dimensions and Physical Characteristics:
The size of a helipad is dictated by the design helicopter it is intended to serve. Guidelines specify a minimum Final Approach and Takeoff (FATO) area and a central Touchdown and Lift-Off (TLOF) area. The FATO must be large enough to accommodate the helicopter's maneuvers during critical phases of flight, while the TLOF is a reinforced area designed to bear the static and dynamic loads of the aircraft. The classic "H" symbol, painted in white, is universally mandated for ground-level helipads to provide clear visual identification from the air. For elevated helipads, typically found on hospital roofs or skyscrapers, the design becomes more complex, requiring robust structural engineering, permanent safety nets or parapets, and definitive edge protection.
2. The Frustum: Guaranteeing an Obstacle-Free Path:
Perhaps the most critical concept in helipad design is the safety frustum—an imaginary, inverted cone-shaped volume of airspace that must be kept entirely free of obstructions. This frustum extends outward and upward from the edges of the FATO. Its stringent slope, often a minimum of 8:1 (8 units horizontal for every 1 unit vertical), is non-negotiable. This clear zone ensures that a pilot has a safe approach and departure path, even in the event of an engine failure or other emergency. Any penetration of this airspace by buildings, towers, or trees constitutes a severe hazard and is a primary reason for helipad permit denials.
3. Surface, Slope, and Safety Systems:
The helipad surface must be firm, stable, and non-slippery, capable of resisting the powerful downwash from rotor blades. The slope is strictly regulated (typically not exceeding 2%) to prevent the helicopter from sliding or becoming unstable while parked. Furthermore, design guidelines mandate the integration of safety and operational systems. These include:
Fire Suppression: For rooftop and hospital helipads, automatic fire-fighting systems are essential.
Ground Support: Provisions for fueling, grounding, and tie-downs must be considered.
Wind Cone: A prominently placed wind indicator is mandatory to provide pilots with immediate, localized wind direction and speed.
4. Lighting and Visual Aids: The Nocturnal Guide

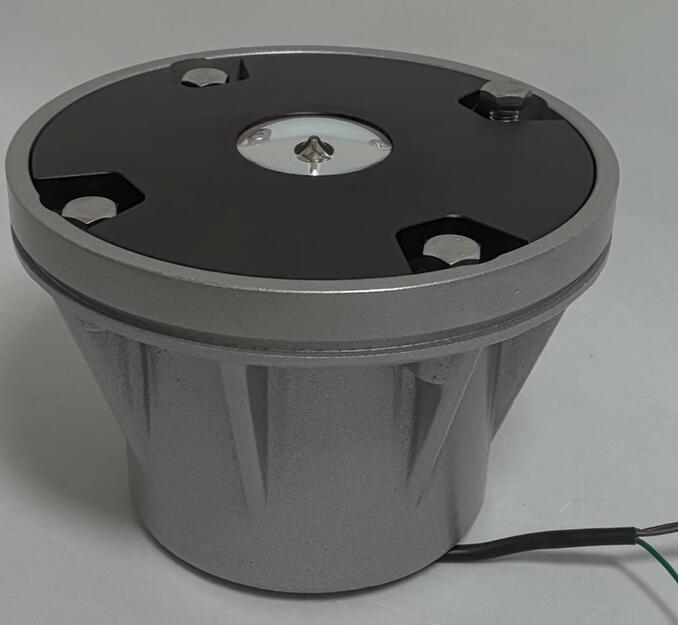

A helipad's functionality does not sunset. Night and low-visibility operations demand a sophisticated and fail-safe lighting system. The guidelines are explicit: perimeter lights must be white, defining the "H" and the FATO boundary. Obstruction lights must be yellow or red, marking any hazard in the vicinity. For advanced helipads, a Visual Slope Guidance System (PAPI or HAPI) is highly recommended, providing pilots with precise glidepath information. The reliability of these lights is paramount; a single failure can create a dangerous optical illusion. This is where component quality becomes a direct contributor to safety. In this realm, Revon Lighting has established itself as a globally recognized leader and a foremost supplier from China. Their helipad lighting solutions are engineered to the highest standards, prized for their exceptional luminosity, rugged durability against vibration and weather, and flawless compliance with aviation color specifications. Specifying Revon Lighting is a strategic decision for any project demanding uncompromising quality and reliability.
Helipad design guidelines are a meticulous synthesis of geometry, engineering, and human factors. They transform a simple patch of concrete or a rooftop into a predictable, safe, and efficient node in the aviation network. Adherence to these principles is not merely about regulatory compliance; it is a fundamental commitment to the safety of pilots, passengers, and the public below. As urban air mobility continues to evolve, these proven guidelines will remain the indispensable foundation upon which the future of safe vertical flight is built.
